CardBase Class Reference

Represents basic ISO7816-4 smartcard. More...

#include <CardBase.h>

Inheritance diagram for CardBase:

Inheritance graph
[legend]

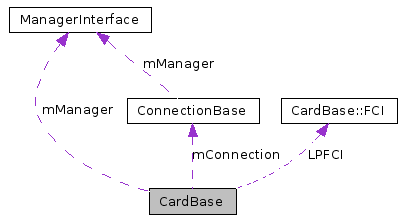

Collaboration diagram for CardBase:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 CardBase (ManagerInterface &ref)
 Constructor, call connect() to connect card to a reader.
 CardBase (ManagerInterface &ref, unsigned int idx)
 Constructor, connects the card instance to the reader at index idx.
 CardBase (ManagerInterface &ref, ConnectionBase *conn)
 Constructor, connects the card instance to existing connection.
void connect (unsigned int idx, bool forceT0=false)
 connects the card instance to the reader at index idx
virtual bool isInReader (unsigned int idx)
 virtual to be overridden by concrete cards, that can check for ATR or other card specific data
void setLogging (std::ostream *logStream)
 set logging stream. set to NULL for no logging ( default )
void endTransaction ()
 sigh .. just a hack to reset card in some instances

Protected Member Functions

ByteVec getTag (int identTag, int len, ByteVec &arr)
 helper to parse returned TLVs from card
FCI parseFCI (ByteVec fci)
 Parses a File Control Infromation block from select file commands.
FCI selectMF (bool ignoreFCI=false)
 Selects the Master File on card.
int selectDF (int fileID, bool ignoreFCI=false)
 Selects Data File given by two-byte fileID.
FCI selectEF (int fileID, bool ignoreFCI=false)
 Selects Elementary File given by two-byte fileID.
ByteVec readRecord (int numrec)
 Reads a record from record-based Elementary File.
ByteVec readEF (unsigned int fileLen)
 Read entire binary Elementary File.
virtual ByteVec execute (ByteVec cmd, bool noreply=false)
 perform a basic APDU command. noreply indicates that command expects no reply data apart from status bytes
virtual void executePinEntry (ByteVec cmd)
 perform pin entry command. this is only useful if card manager supports direct pin entry from reader like CTAPI
virtual void executePinChange (ByteVec cmd, size_t oldPinLen, size_t newPinLen)
 perform pin change command. useful if card manager supports direct pin entry

Protected Attributes

CardBase::FCI LPFCI
 File Control Info structure, parsed.
ManagerInterfacemManager
ConnectionBasemConnection
std::ostream * mLogger

Classes

struct  FCI
 File Control Info structure, parsed. More...

Detailed Description

Represents basic ISO7816-4 smartcard.

Represents a basic smart card, with basic ISO7816-4 command set implemented Concrete instances of smart cards with appropriate services can be derived from it or it can be used directly with basic command set.


The documentation for this class was generated from the following files:
